National Textile Needle Detector Calibration Standard Drafting Unit
Home > Products > Conveyor Needle
Tel：13723581296
Main features:
1, the needle detector machine adopts Japanese technology;
2, 80% main parts imported IC SMT assembly, thickening aggravating frame design, exquisite painting spraying;
3, the digital computer control sensitivity setting 1-100 grade stepless adjustment, high and low sensitivity to the 120 level adjustment;
4, accurate identification indicating metal location;
5, strong bearing quality, 30 kg goods smooth operation, unique pigment identification mode;
6, strong anti-jamming performance, detection zone 12 PM parts sensitivity equilibrium, 12 lights a precise instructions;
7, detect metal foreign body acousto-optic alarm and automatically return to stop machine, manual reversing function;
8, support unlimited widened, heightening, compound and other non-standard custom design.
Technical parameters:
Test method: magnetic field induction, computer detector.
Test height: 400 mm
The detection sensitivity: Φ 4.0 or higher
Detection width: 800 mm - not the standard size (custom).
Adjustable induction to adjust: 1-120 grade (A standard model B equilibrium mode)
Alarm way: sound and light alarm and shutdown.
Power source: Ac220V 50 to 60 hz.
Power: 180 w.

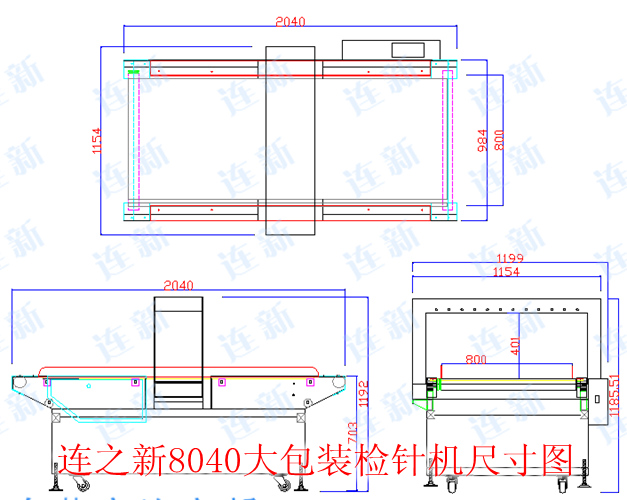

The fuselage size: 2050 x 1200 x 1250 wide long high.
Net weight: greater than 400 kg.

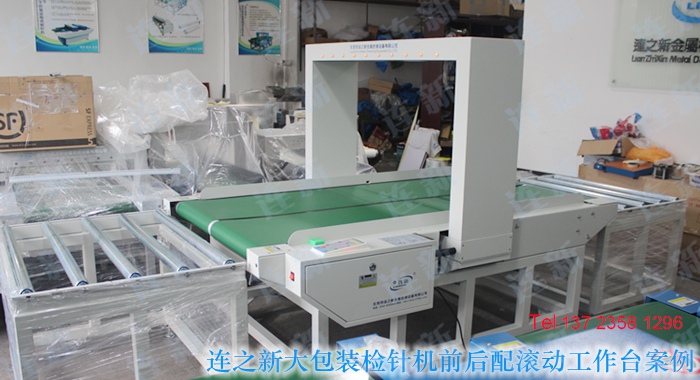

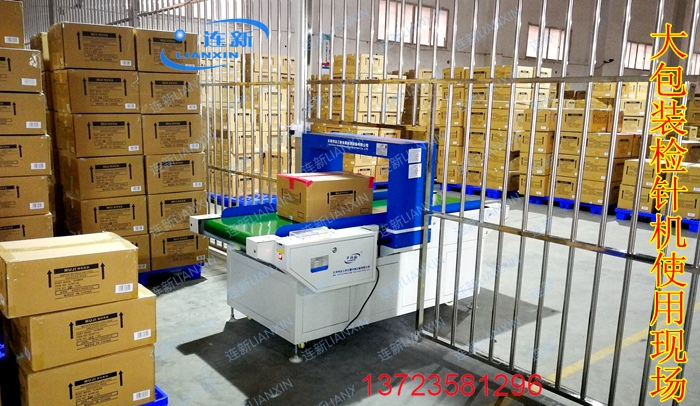

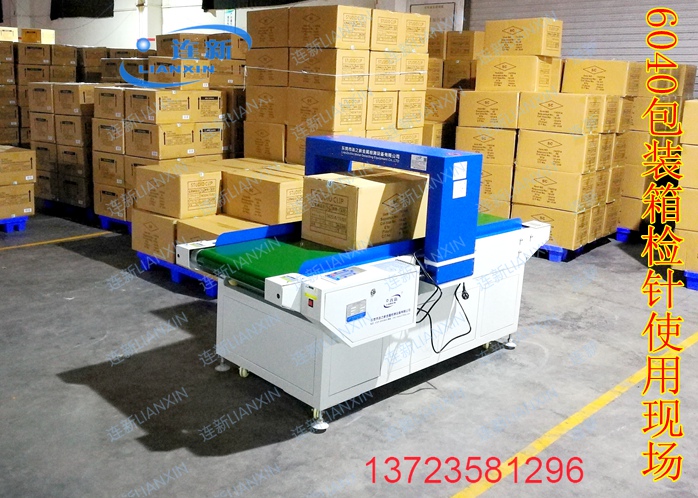

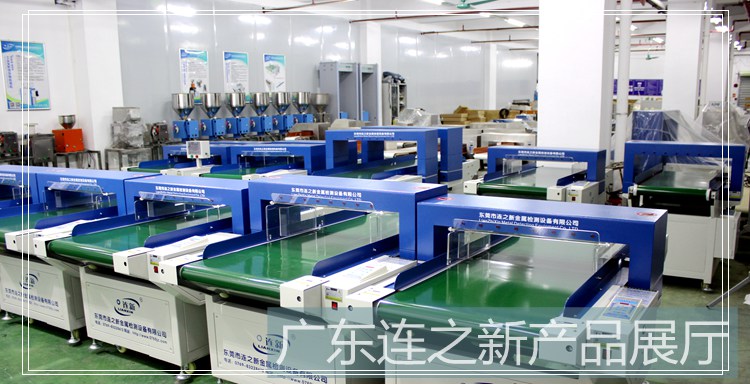

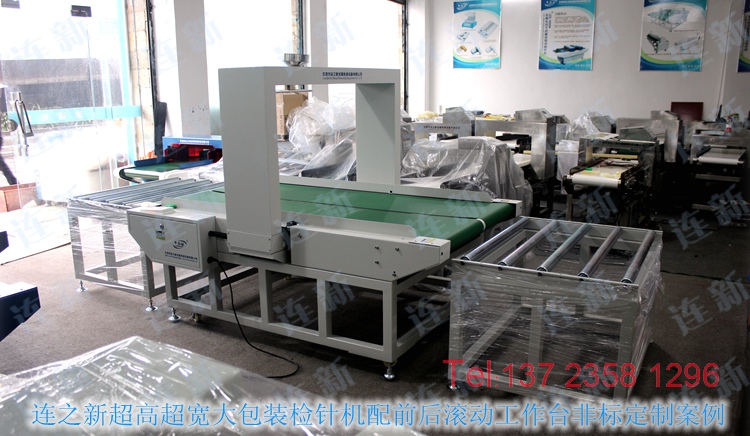

其他定制规格图片：
